Single / Mono Color LED Display Module , 320mm * 160mm 1R Pixel IP65 LED Panel Module

Name: Single Mono Color LED Display Module 320mm 160mm 1R Pixel IP65 LED Panel Module
Brand: Viso
Price: 1 USD

Cheap Single / Mono Color LED Display Module , 320mm * 160mm 1R Pixel IP65 LED Panel Module for sale

Brand Name : Viso

Model Number : PH10 DIP Red 16x32

Certification : UL CE ROHS ISO ETL SGS SAA Fcc EMC

Place of Origin : China

MOQ : 1 PCS / 1 Unit

Price : Negotiation

Payment Terms : L/C, T/T, Western Union, Paypal, Credit Card, MoneyGram, VISA

Supply Ability : 8,000 square meters per month

Delivery Time : 4-6 work days

Packaging Details : Carton box or Wooden case

Pixel Configuration : 1R

Pixel Pitch : 10mm

Waterproof : IP65

Life Span : 100000hours

Max Power Consumption : 26W

Pixel Density : 10000dots/m2

Drive Type : 1/4 Scanning

Module Resolution : 16*32

Storage Temperature : -40°C~60°C

Contact Now

Single /Mono Color LED Display Module , 320mm * 160mm 1R Pixel IP65 LED Modules for Sign

Product Description:
1) High brightness and stable picture.
2) Long lifetime
3) Reducing power consumption by 50% and has passed the inspection by the national inspection authorities

outdoor single color red led display module P10 320mm*160mm

Technical Specification:

LED Configuration	DIP 1R
Pixel Pitch	10 mm
Pixel Density	10.000dots/m2
Chip Color	1R
Module Size	320mm*160mm
Module Density	32*16
Display Weight	0.5KG/pcs
Viewing Distance	≥10 m
Viewing Angle	V/H 120°/45°
Maximum Power Consumption	≤800W/m2
Average Power Consumption	≤400W/m2
Drive Method	1/4 scan Constant Voltage
Frame Rate	≥60Hz
Refresh Rate	≥300Hz
Brightness	≥5500cd/m2
Environment Temperature	-20°C~60°C
Working Current	220V±15% or 110V±15% 50~60Hz
Grey Scale	256 (synchronized)
Method of Brightness Adjustment	256
MTBF	≥9,000h
Lifetime	≥100,000h
Dead Dot	≤0.0003

1. Wide application field & short ROI time:
commercial advertising LED display screen, Stadium perimeter LED display screen, Mobile trailer LED display screen for mobile media, shopping mall LED display screen for logo showing, bank&stock exchange LED display screen for rates showing, train & bus station LED display screen, air port LED display screen, telecommunication LED display screen system for information showing and instruction
2. High Contrast ratio: 4000:1
Which is a very high level to ensure a vivid image of our LED display screen system.
3. First-class LED chip:
Supplied by Nichia of Japan & other high strictly selected LED chip to ensure the long lifetime and high brightness of our LED display screen system
4. Clear vivid image quality:
Even in direct, full-on sunlight to ensure you attract more audience to get short ROI of your LED display screen's investment.::
5. Long-term Brightness:
Automatic or manual adjustment of the brightness of the display.
6. Easy Installation & Using:
easy & simple installation interface and user friendly software to ensure the user friendly interface of the LED display screen system
7. Convenient Servicing:
Front and rear cabinet access makes the maintenance work very convenient and low cost to help you concentrate more time and energy on your main marketing promotion
Single / Mono Color LED Display Module , 320mm * 160mm 1R Pixel IP65 LED Panel Module

Product Tags:

full color led module

led screen module

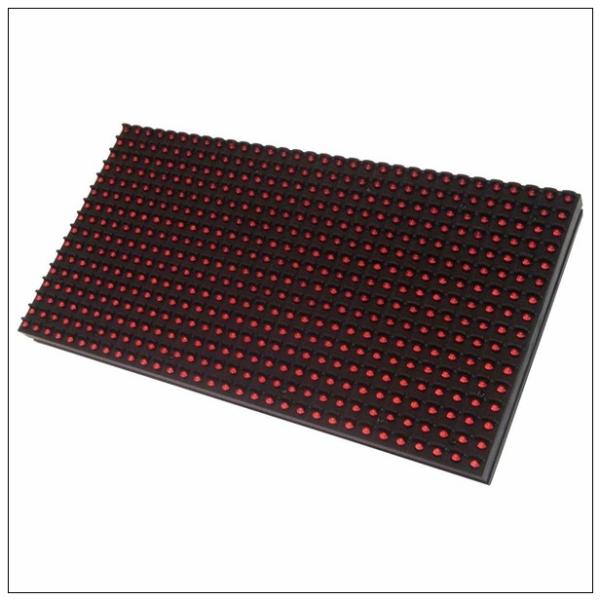

Single / Mono Color LED Display Module , 320mm * 160mm 1R Pixel IP65 LED Panel Module Images
